Formula 1's updated Suzuka map for the 2026 Japanese Grand Prix gives fans a much clearer picture of how overtaking could work under the sport's new regulations. The biggest talking points are the newly identified Straight Mode zones, plus the placement of the Overtake detection point and Overtake activation point. Together, they show how F1's new active-aero era is set to reshape racecraft at one of the most technical circuits on the calendar. The 2026 rules replace traditional DRS with a new system built around active aerodynamics and Overtake Mode, while also introducing smaller, lighter cars designed to follow more closely.
Suzuka has always been a circuit where rhythm matters as much as raw speed. From the Esses to Spoon and 130R, drivers are constantly trading cornering commitment against exit speed and energy management. That is exactly why this updated track map matters: it does not just show where cars may gain straight-line performance, it reveals where drivers will need to build the lap to create a real passing chance. Under the 2026 framework, Straight Mode reduces drag on designated sections of track, while Overtake Mode gives an extra performance aid to drivers who are within one second of the car ahead at the detection point.
Straight Mode is part of Formula 1's new active aerodynamics package. In simple terms, the car shifts into a lower-drag configuration on designated straights to improve acceleration and top speed. Formula 1 says this is not just a rear-wing change like the old DRS era; the front wing also moves, meaning the car adapts between a higher-downforce setup for corners and a more efficient low-drag setup for straights.
That distinction is important. Straight Mode is not only an overtaking tool. It is also a lap-efficiency tool, because every driver can use it in the approved zones in dry conditions. In other words, Suzuka's updated map is showing us where the 2026 cars will naturally try to recover straight-line efficiency after some of the circuit's most demanding corners.
Overtake Mode is the direct replacement for DRS as the dedicated attacking aid. Formula 1 explains that it becomes available only when a driver is within one second of the car ahead at the detection point. When triggered, it allows the driver to access an additional electrical performance profile, including an extra +0.5MJ of energy recharge potential, helping sustain higher speed for longer. Formula 1's own 2026 explainer notes that it is expected to be most effective on longer straights, where the speed delta can keep building over time.
The FIA's 2026 sporting regulations also define the logic behind this system: if a car is within the required detection gap at the detection line, Override Mode is activated at the activation line and may then be used by the driver.

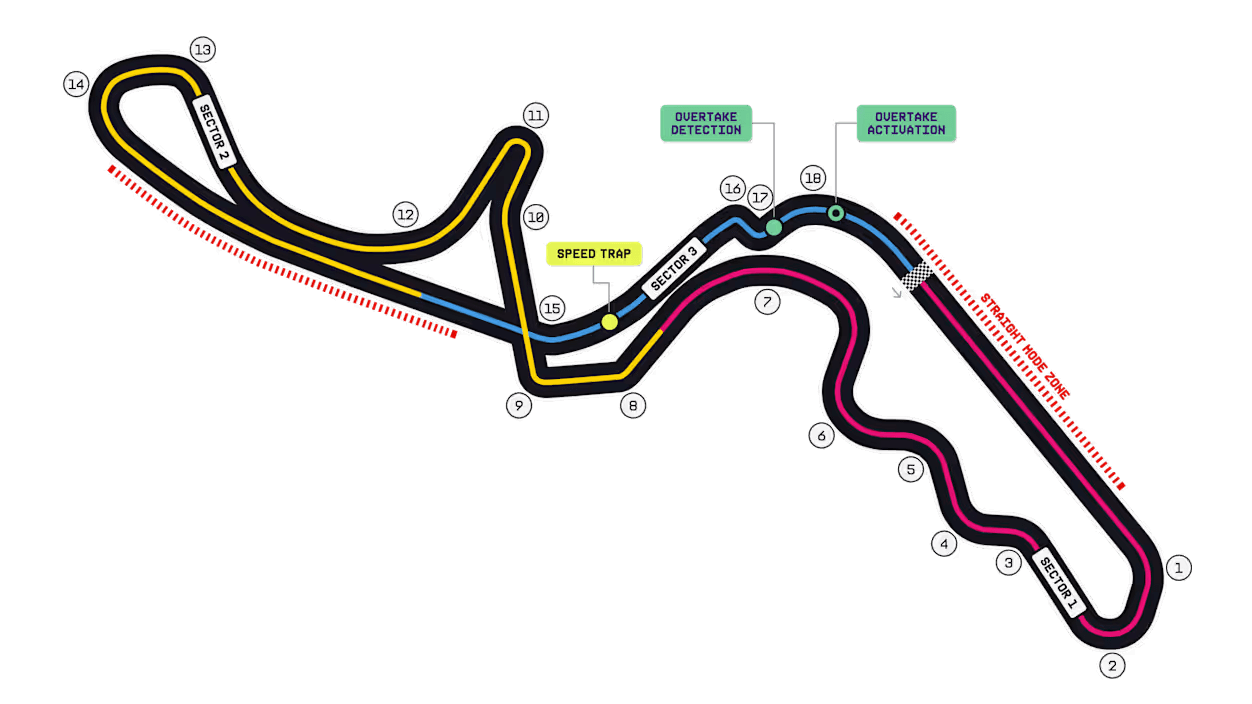

The updated Suzuka map shows two Straight Mode zones, one Overtake detection point, one Overtake activation point, and a speed trap. Taken together, those markers tell us that Suzuka in 2026 should remain a momentum circuit, but one with a more clearly engineered overtaking sequence than before.
The most important feature is the main-straight attack pattern. The map places the Overtake detection point before the final chicane and the Overtake activation point after the last corner onto the pit straight. That means the decisive part of the setup happens in the final sector: if a driver can stay close enough through 130R and the Casio Triangle, they can qualify for Overtake Mode and launch onto the straight with a stronger attack into Turn 1. That aligns with Formula 1's explanation that the detection point is nominally at the final corner and that the benefit is strongest on longer straight sections.
The map also shows another Straight Mode zone on the section after the Hairpin and along the acceleration phase toward Spoon. That matters because Suzuka is not a circuit with many obvious stop-and-go overtaking points. Instead, the lap is built through sequences. A strong Hairpin exit should now have even greater strategic value, because Straight Mode can help a driver shrink the gap, pressure the car ahead, and carry momentum into the next part of the lap. Formula 1 has already described Straight Mode as a system intended to improve efficiency and acceleration toward top speed, so its placement on this part of Suzuka makes technical sense.
Suzuka has historically been difficult for overtaking because much of the lap is formed by medium- and high-speed corners, where following closely was often the bigger challenge than making the move itself. The 2026 cars are intended to be better in traffic thanks to a revised aerodynamic philosophy, and the active-aero system adds a new layer to how drivers prepare an attack.
With the updated map now showing the detection point before the chicane and activation on the run onto the main straight, Turn 1 looks set to be the prime overtaking opportunity at Suzuka in 2026. The attacking formula is straightforward: stay within range through the final corners, secure Overtake eligibility at the detection point, activate the system onto the straight, and force the car ahead to defend into one of the fastest and most intimidating first-corner entries in Formula 1. That does not mean passes will be easy, because Suzuka still rewards clean exits and driver commitment more than brute-force drag racing. But it does mean the new rules have created a much more defined attacking corridor than before.
The second Straight Mode zone may not produce as many headline overtakes as the run to Turn 1, but it could be just as important tactically. Suzuka is a circuit where track position is often protected by pace through corners rather than raw terminal speed. By placing a Straight Mode zone after the Hairpin, Formula 1 is effectively giving drivers a better chance to convert traction into pressure.
That means the updated map suggests overtaking at Suzuka will be more layered than ever in 2026. The pass might not begin where it ends. A driver could gain in the mid-lap Straight Mode zone, force the car ahead into a compromised line later in the lap, then finish the job into Turn 1 after qualifying for Overtake Mode. That would be very Suzuka: technical, planned, and heavily dependent on precision. Formula 1's 2026 rule explanations repeatedly stress that these tools are strategic and can be used in a targeted way depending on where a driver is most vulnerable or most likely to attack.
The updated map does not suggest Suzuka is becoming a simple slipstream circuit. If anything, it confirms the opposite. The new Straight Mode zones and Overtake points appear to be designed to preserve the character of the lap while making the attacking logic clearer for fans and more usable for drivers.
That matters because Suzuka's identity has always been tied to flow. You do not earn overtakes there only with horsepower. You earn them with exit speed, confidence in fast corners, disciplined energy use, and the ability to remain close through sections where mistakes are expensive. The 2026 rules seem built to support that style of racing rather than erase it. Cars should be better able to follow, Straight Mode should improve efficiency on the key runs, and Overtake Mode should add a sharper edge when a driver has genuinely done the hard work to get within range.
The updated Suzuka map is more than a graphic tweak. It is one of the clearest early indicators of how Formula 1 wants the 2026 racing product to work in practice. With two Straight Mode zones, a detection point before the final chicane, and activation onto the pit straight, the Japanese Grand Prix now looks set to feature a much more structured build-up to overtaking, especially into Turn 1.
